Can Cooling Tower Fill Affect Fan Operating Conditions?

When a cooling tower starts consuming more fan power than expected, the first things engineers usually check are the motor, gearbox, fan blades, and electrical system. However, the cooling tower fill can also influence the operating conditions of the fan.

The reason is simple: air has to pass through the fill before leaving the tower. The internal structure of the fill therefore becomes part of the tower's overall airflow resistance.

How Does Fill Influence Airflow?

As air moves through structured fill, it changes direction while passing through the designed channels. This creates contact between air and water, which is necessary for evaporative cooling.

At the same time, the fill creates resistance to airflow. If the resistance becomes higher than expected, the fan may need to work harder to maintain the required airflow rate.

This does not mean that a low-resistance fill is always the best choice. The cooling tower needs an appropriate balance between heat-transfer performance and airflow resistance.

Why Does the Fill Configuration Matter?

Different fill configurations can produce different internal airflow paths. Dimensions, pitch, surface pattern, and overall arrangement all contribute to the resistance experienced by the fan.

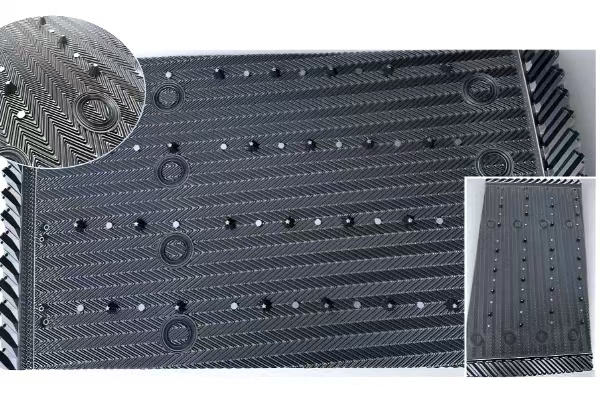

For example, an 1830mm Width Cooling Tower Fill may be suitable for a tower layout designed around larger fill sections, while another project may use a narrower configuration such as 1470mm Wide Cooling Tower Fill for Flexible Applications.

The important consideration is not simply the width of the fill. The complete fill structure and its relationship with the tower's airflow system need to be evaluated.

When Should Fan Conditions Be Checked?

If a tower has recently received new fill and the fan operating point changes noticeably, it is worth checking whether the new fill configuration is contributing to the difference.

Engineers can compare airflow, fan current, operating speed, water temperature, and pressure conditions before and after the modification. This provides a better indication of whether the change is related to the fill or another component.

Do Not Look at Fill and Fan Separately

A cooling tower is an integrated system. Increasing heat-transfer area, changing fill geometry, or modifying the fill arrangement can affect the airflow side of the tower as well.

For this reason, fill selection should consider both thermal requirements and the fan system. A technically suitable fill is one that works within the operating conditions of the entire tower rather than optimizing only one specification.

Final Takeaway

Cooling tower fill is part of the tower's airflow path, so its influence should not be ignored when evaluating fan performance. When replacing or modifying fill, checking the relationship between fill resistance, airflow, and fan operation can help prevent unexpected changes in tower performance and energy consumption.
